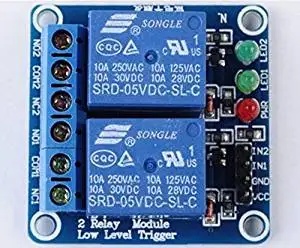

5V 2-Channel Relay Module Low Level Triger Relay shield for Arduino Raspberry pi

5V 2-Channel Relay Module Low Level Triger Relay shield for Arduino Raspberry pi

Shared by: Hazel Rivera from amazon
Share
  • Reference Price:
    8.0
Over 10 suppliers can give you a quotation.
Get Quotations Now
You should get the quotation(s) in 6 hours .
Description
Module interface specifications: 1. VCC : DC power supply positive pole 2. GND :DC power supply negative pole 3. IN1 : channel 1 signal triggering pin 4. IN2 : channel 2 signal triggering pin Relay output: 1. Normally closed pin (NC1) : channel 1 relay normally closed pin 2. Common pin (COM1) : channel 1 relay common pin 3. Normally opened pin (NO1) : channel 1 relay normally opened pin 4. Normally closed pin (NC2) : channel 2 relay normally closed pin 5. Common pin (COM2) : channel 2 relay common pin 6. Normally opened pin (NO2) : channel 2 relay normally opened pin
