Electronics-Salon DB37 D-SUB DIN Rail Mount Interface Module, Male / Female, DSUB Breakout Board.

Shared by: William Gardner from amazon

Reference Price:

24.99

Over 786 suppliers can give you a quotation.

Get Quotations Now

You should get the quotation(s) in 6 hours .

Related Products from Alibaba

HW-107 Micro USB 5V 1A 18650 Lithium Battery Charging Board Charger Module With Protection Dual Functions 1A Li-ion TP4056 US $0.40-$0.60

DC-DC Adjustable Buck Power Supply Module LM2596 US $0.36-$0.50

Super Bright Lighting warm white LED Module 5050 3 LED DC12V IP65 Waterproof Advertisement Design 0.75w 5054 smd Led Module US $0.04-$0.07

LED China Supplier 3 led module Epoxy 1.2W Waterproof 12V DC CE RoHS Approval SMD Korea Samsung LED Module 5730 US $0.06-$0.16

Description

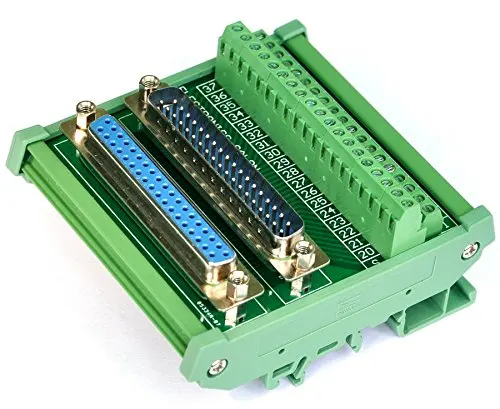

Din Rail Mount DB37 Interface Module. Male and Female DB37 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 80 x 43mm(W x L x H). PCB dimensions: 72 x 77.35mm(W x L). 100% new, never used. Terminal block specifications: Pitch - 3.81mm. Rated voltage - 150V. Rated current - 10A. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass. 　
