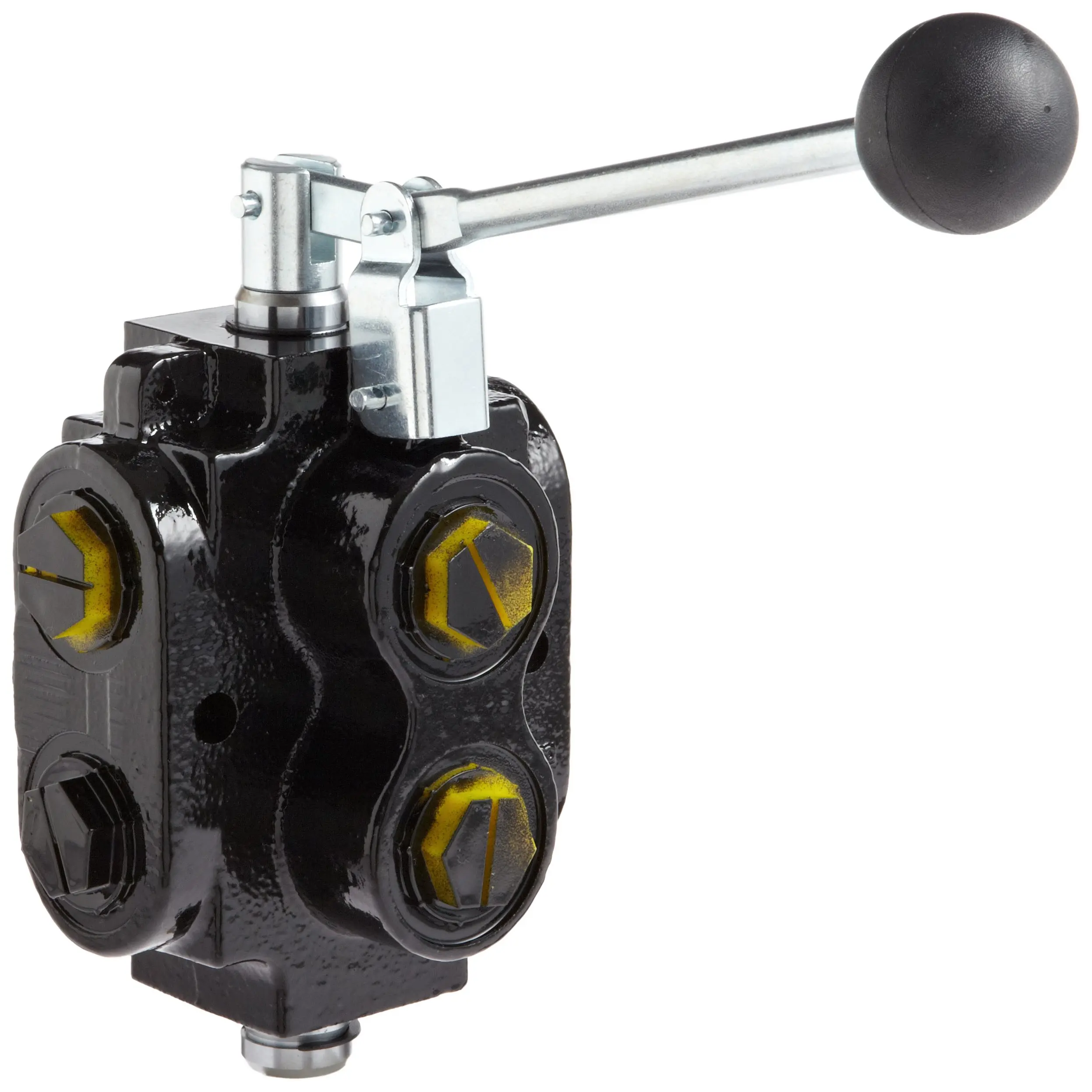

Prince DS-5A1E Directional Control Valve, Monoblock, Cast Iron, 1 Spool, 6 Ways, 2 Positions, Lever Handle, 2500 psi, 40 gpm, #12 SAE

Prince DS-5A1E Directional Control Valve, Monoblock, Cast Iron, 1 Spool, 6 Ways, 2 Positions, Lever Handle, 2500 psi, 40 gpm, #12 SAE

Shared by: Bobby Perkins from amazon
Share
  • Reference Price:
    141.54
Over 10 suppliers can give you a quotation.
Get Quotations Now
You should get the quotation(s) in 6 hours .
Description
The Prince valve model DS is a manual 6-way 2 position double selector valve. This valve will divert the flow going to two separate hydraulic circuits. For example two double acting cylinders or two reversible hydraulic motors can be operated by one four-way valve. When the double selector spool is pushed in, the C and D ports (top ports) are connected to the A and E ports (right ports). When the selector spool is pulled out, the C and D ports are connected to the B and F ports (left ports). An optional series/parallel spool is also available. This spool will run two reversible hydraulic motors in series when the spool is out and in parallel when the spool is pushed in.
